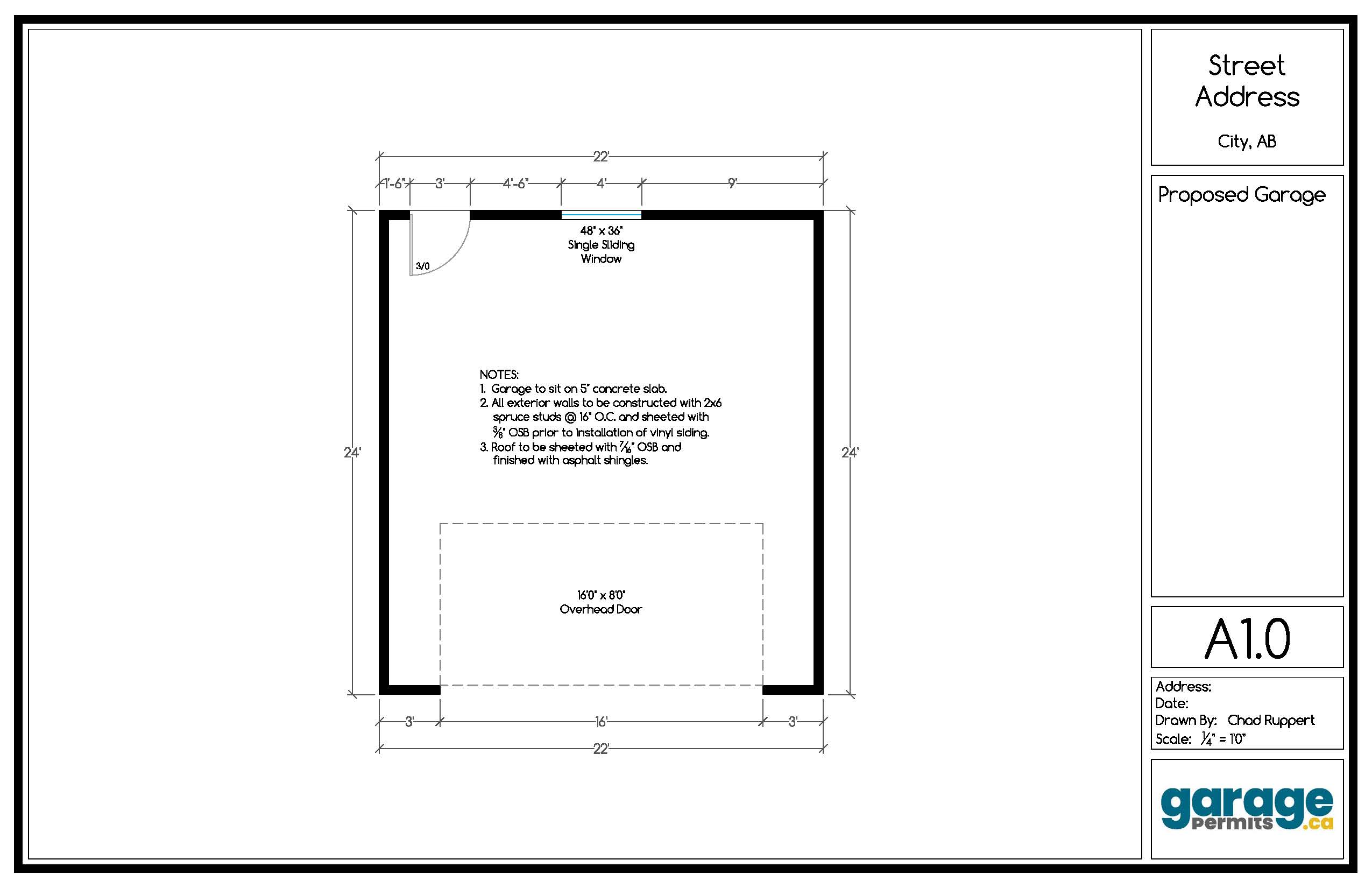

Floorplan
Shows garage size, door and window locations, slab and wall details, exterior finishes, and core dimensions.
Mountain View County, Alberta
Mountain View County Garage Permit Drawings
Mountain View County garage drawings should clearly show zoning context, placement, building size, setbacks, height, and construction details for rural or residential review.
Local review focus
What Mountain View County needs to confirm before approval.
County garage reviews can depend heavily on district rules, parcel configuration, existing buildings, and proposed use.
Standard detached garages may fit the flat-rate package. Larger workshops or non-standard structures should be reviewed before pricing.
Required detail
Site plan
Required detail
Floorplan
Required detail
Elevations
Required detail
Cross sections and foundation information
Permit process
A clearer path through the Mountain View County review process.
The goal is to give the permit office a complete, readable package the first time, then respond quickly if they need a clarification. That is how permit review becomes more predictable.
- 1
Review the land use district and accessory building requirements.
- 2
Prepare the site plan and building drawings.
- 3
Submit the permit package with any required county documents.
- 4
Clarify or revise details if the county requests more information.
Drawing package
The plans your reviewer expects to see.
Every page in the package answers a specific permit question about location, size, height, structure, or compliance. Clear drawings reduce uncertainty for the homeowner, contractor, and reviewer.

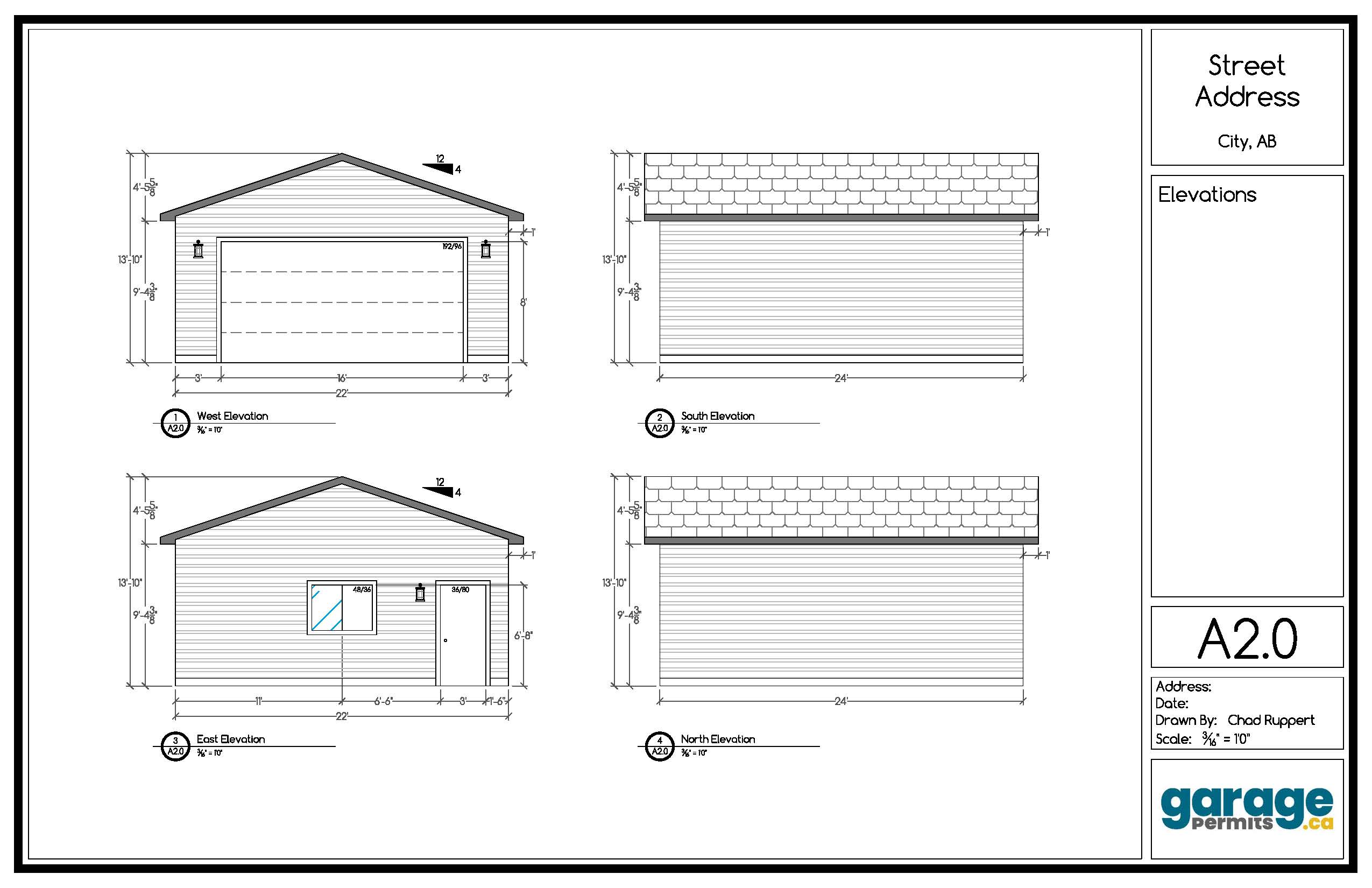

Elevations
Shows all sides of the garage with roof slope, eave height, peak height, openings, and exterior appearance.

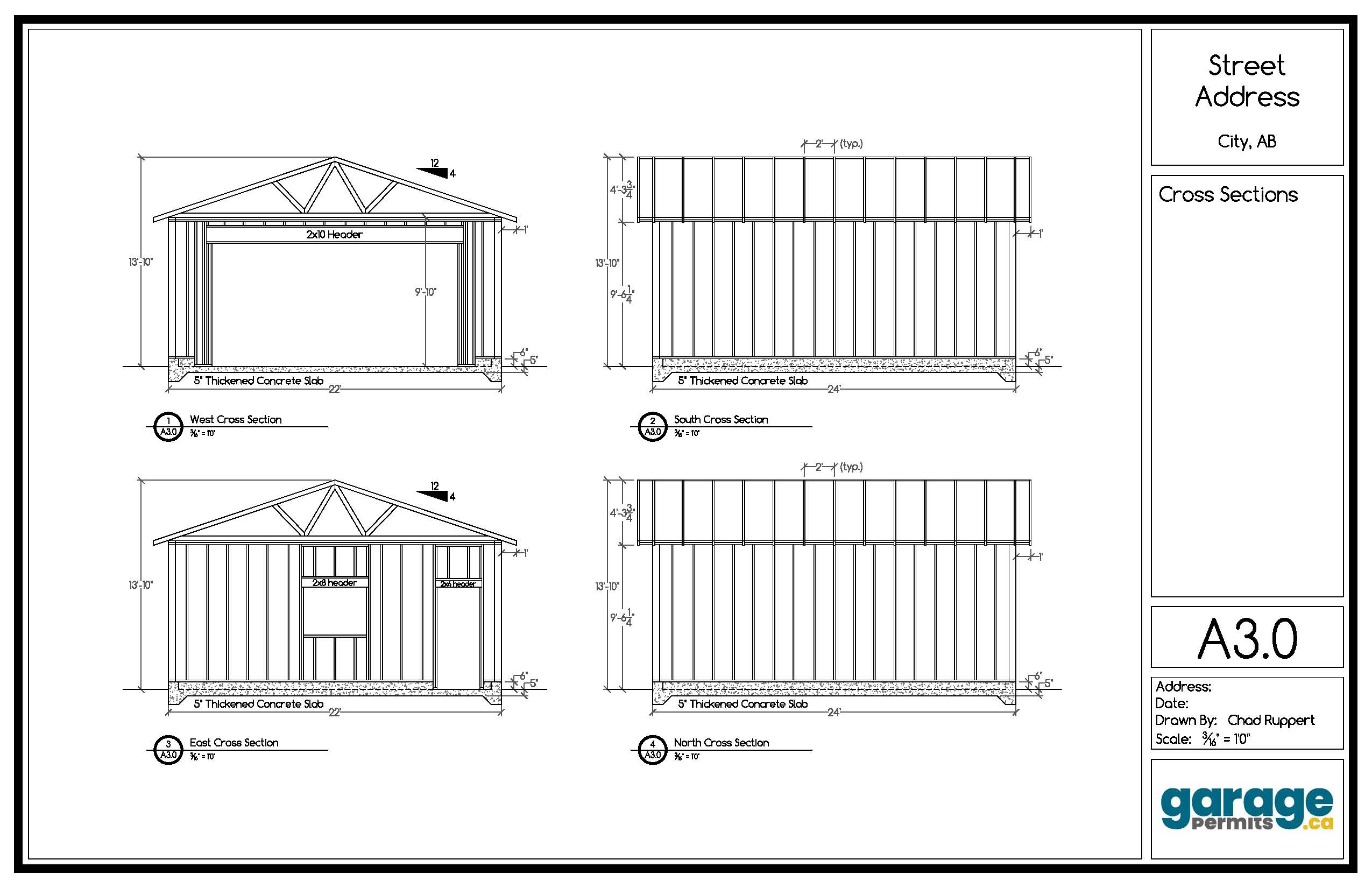

Cross sections
Shows wall height, truss configuration, slab thickness, eave conditions, and assembly details.

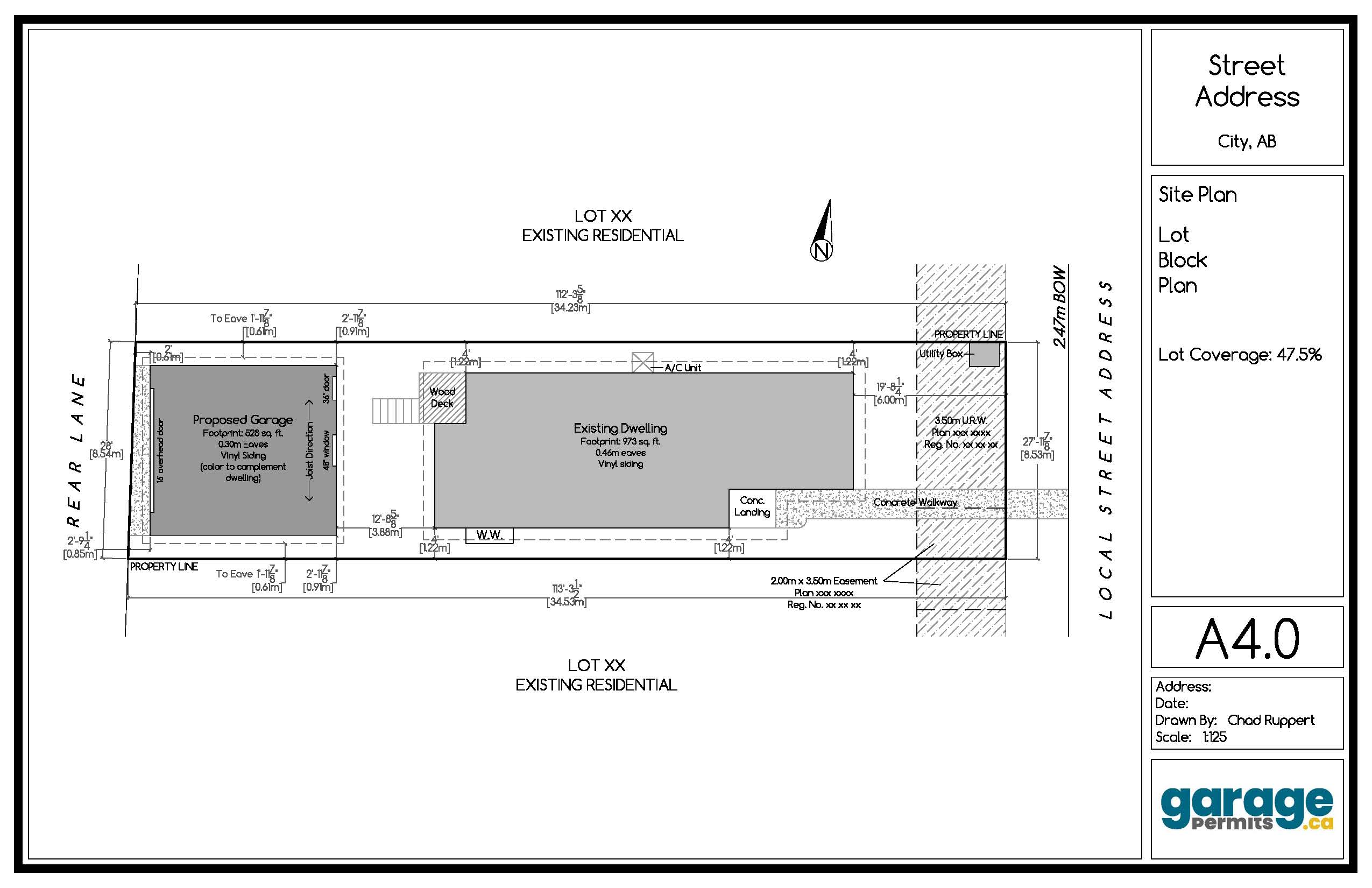

Site plan
Shows property lines, house location, proposed garage placement, setbacks, lot coverage, and registered rights-of-way.
Mountain View County FAQ
Local answers for garage permit planning.
Do Mountain View County garage projects need more detail?
Often, yes. Mountain View County garage and workshop projects can involve larger buildings, different setbacks, rural parcel conditions, and more site-specific constraints than urban lane garages.
What should a Mountain View County garage site plan show?
The site plan should show property context, existing buildings, proposed garage location, setbacks, access, building size, and any constraints that affect where the detached garage or workshop can be placed.
When are engineered drawings required for a Mountain View County garage?
Engineering may be required for larger workshops, unusual foundations, long spans, tall walls, non-standard construction, or site conditions that go beyond a typical detached garage.
Do Mountain View County garage drawings need to show setbacks?
Yes. Mountain View County garage drawings should show setbacks, parcel context, existing buildings, access, building size, and land use district information so the county can review placement.
Do I need a building permit for a detached garage?
Yes. In Calgary and most Alberta municipalities, a detached garage over 10 square meters requires a building permit before construction begins. The permit drawings show the garage location, size, setbacks, elevations, sections, and construction details for review.
What drawings are required for a detached garage permit?
A detached garage permit usually requires a site plan, floorplan, elevations, cross sections, and construction details. These drawings help the municipality confirm zoning, setbacks, height, lot placement, and building code compliance.
How much do standard garage permit drawings cost?
Standard garage permit drawings start at $695 for detached garages up to 592 square feet. Municipal application and building permit fees are separate and vary by city.
Related guides
Keep planning with the right permit context.
Detached garage drawings
See what is included in the standard garage permit drawing package.
Learn moreGarage setback requirements
Understand how setbacks, eaves, property lines, and rights-of-way affect garage placement.
Learn moreGarage permit process
Review the documents, submission steps, and inspection expectations for garage permits.
Learn more
Permit-ready support
Get Mountain View County garage drawings prepared for permit review.
Send the basic project details and we'll help you choose the clearest path: standard package, custom quote, or suite planning. The goal is fewer permit surprises and a drawing set your municipality can review with confidence.
